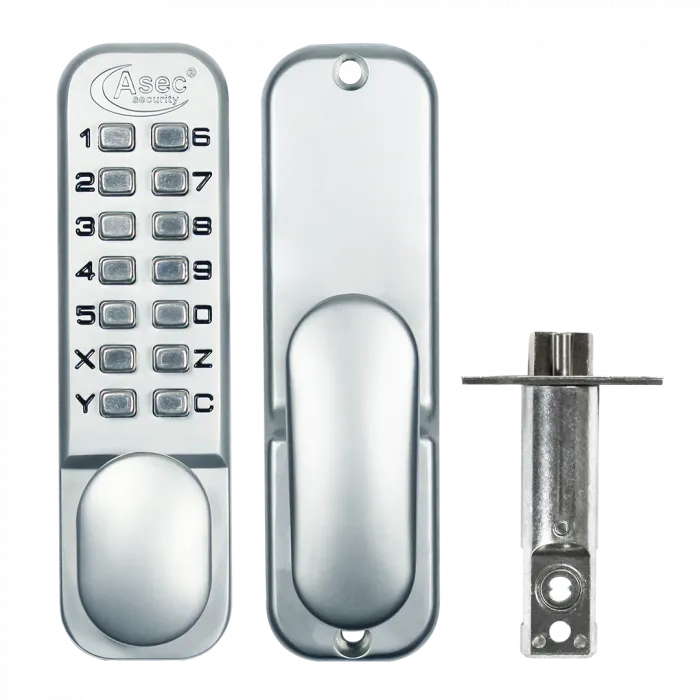

Features:

• 1000 combinations
• For internal or external applications

• Simple installation

• Optional holdback

• Suitable for 35-60mm thick doors

• Supplied complete with tubular latch and fixings



Technical Specification:

• Operation Outside - Thumbturn On Entry Of Code
• Operation Inside - Thumbturn Free Exit
• Passage Set - No
• Width - 41mm
• Code Length - 4 To 7 Digits
• Combination - 1,000
• Case Depth Required - 80mm
• Finish - Satin Chrome
• Door Thickness - 35mm to 60mm
• Brand - Asec
• Weight - 1Kg
• Barcode - 5055120692029
• Backset - 60mm
• Manufacturer Reference - AS2300
• Codes - 1
• Buttons - 14
• Holdback - Yes (Optional)
• Height - 142mm
• Handed - Reversible
• Guarantee - 5 Year
• Latch - 60mm Standard
• Key Override - No
